Lightning damage to networking components

Click thumbnails for a larger view.

The evening I left for Cambridge England, we had a storm in Plymouth, and lightning struck something in the area of my house. I suspect it hit the cable company's box out near the street since my neighbor lost his cable TV service at the same time.
I think that this is the path of the damage:
1) Entered at pillar near street. Cable end blasted.
2) Up the cable, and entered the modem. Modem blasted.
3) Out the ethernet connector into the WAN port on the router/switch. Switch blasted.
4) Out a connector and up to the Dell laptop cradle. Interface not working.
5) Out a connector and into the Sun Ultra-60. Interface not working.
6) Out a connector and into the Brother laser printer. Interface might not be working
7) Out a connector, outside, downstairs and into uplink port on 4-switch. Switch blasted.
8) Out a connector and into a DEC Alpha 4-processor server. Interface might not be working

The cable pillar

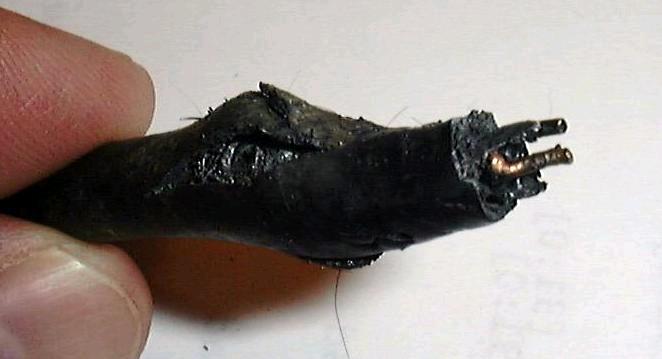

I found this in the cable company pillar box

The 3Com cable modem

Outgoing ethernet connector

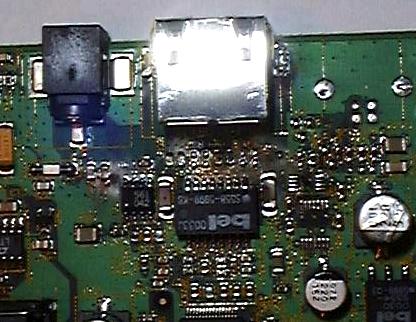

Many toasted components

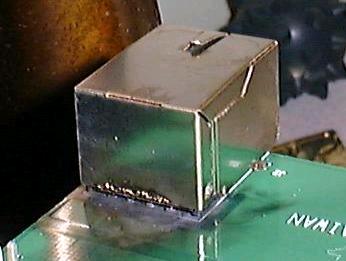

Side view of the connector

LinkSys EZXS554 5-port Ethernet switch from the basement.


LinkSys BEFSR81 8-port Ethernet Cable router/switch from upstairs.

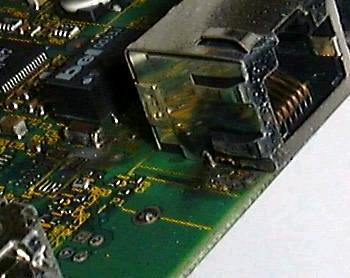

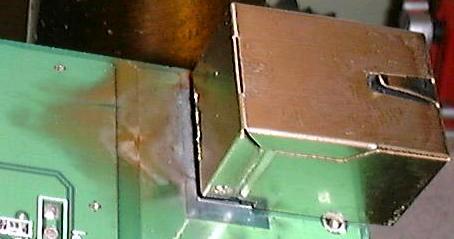

This chip is missing something	Another blasted ethernet socket	The cable modem connector	Melted metal on the cable modem connector

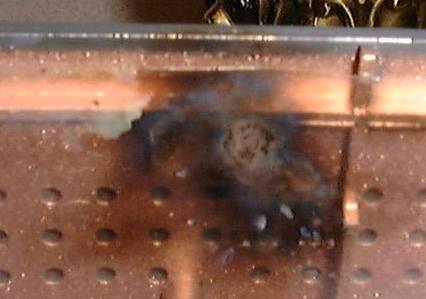

Plasitc underneath the PCB

The new lightening-proof setup.

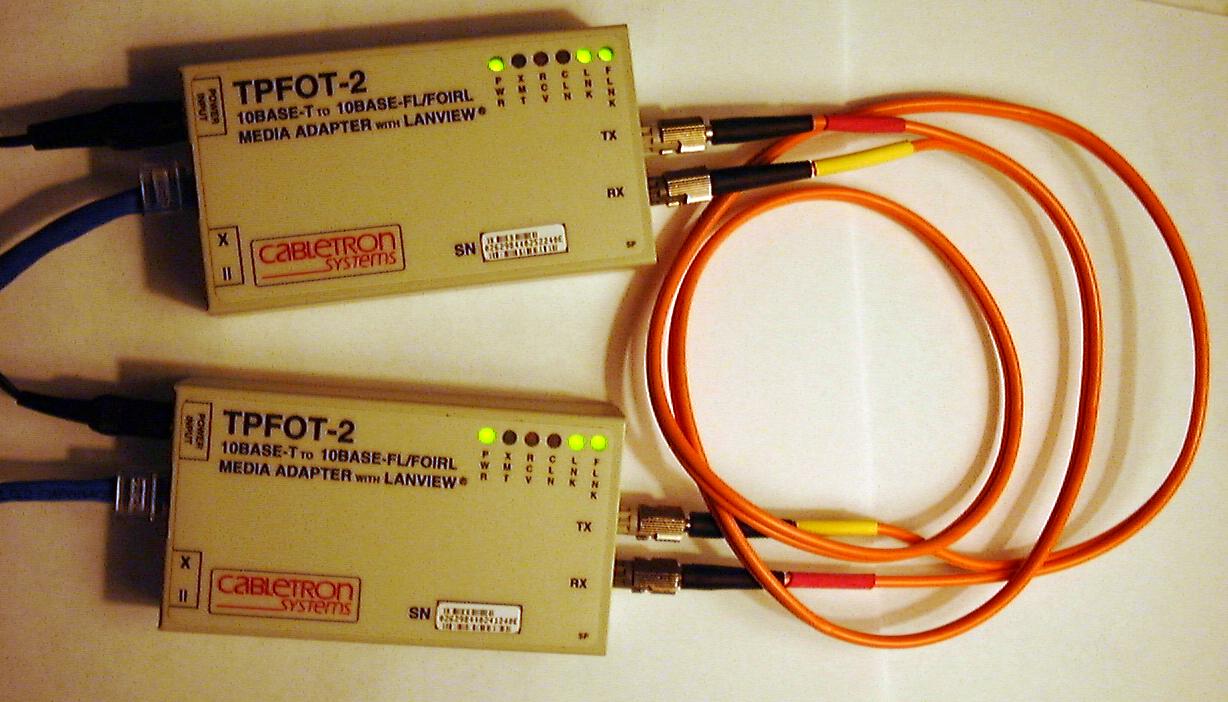

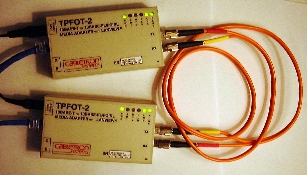

An optical fiber interconnect link. $85 from eBay
