I needed to make something to hold a pen that has a
spring-loaded up-and-down motion. I decided to modify
one of the air-operated cylinders that the hand already
fit. I took it apart, removed the "O" rings, and replaced the
spring with a lighter one.

---

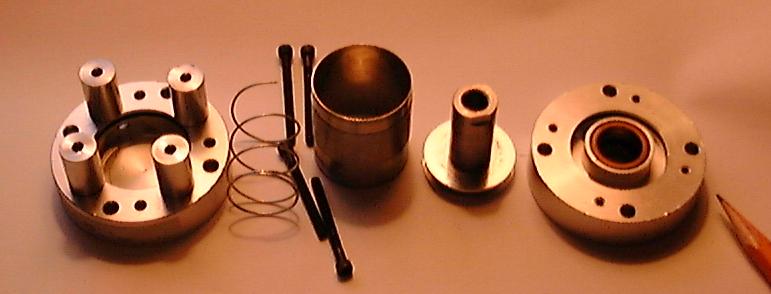

The parts that make up an air-operated cylinder.

---

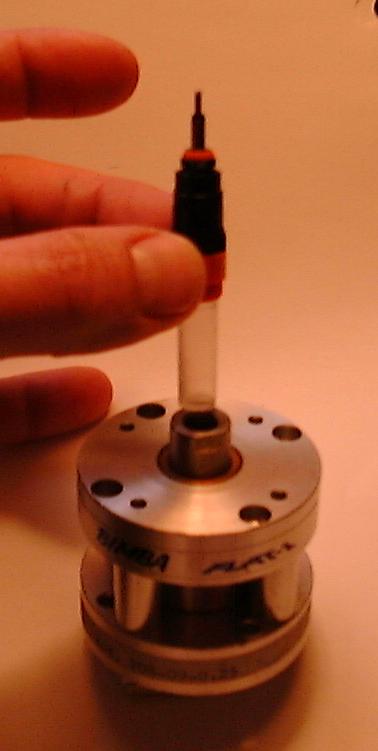

This is how the pen needs to attach

---

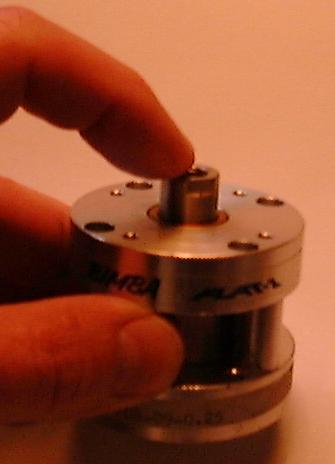

The cylinder extended.

---

The cylinder retracted.

---

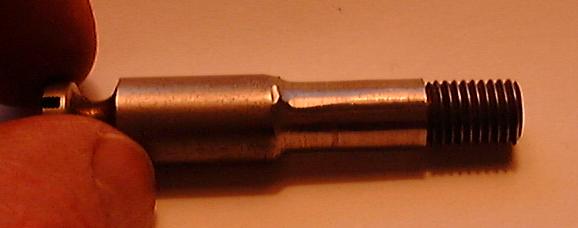

I had to grind this down to fit inside the pen barrel.

---

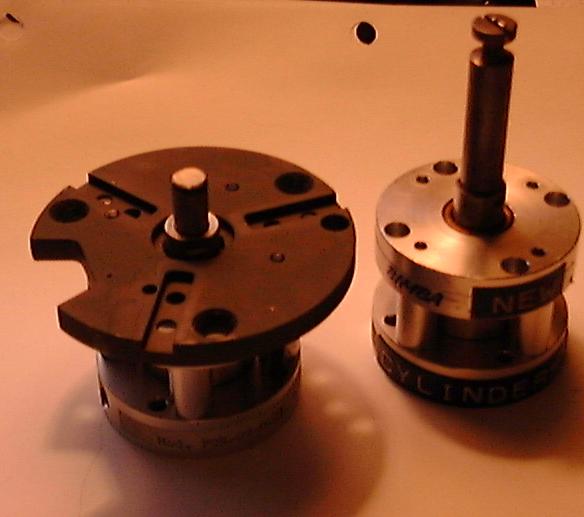

Modified and original cyclinders.

---

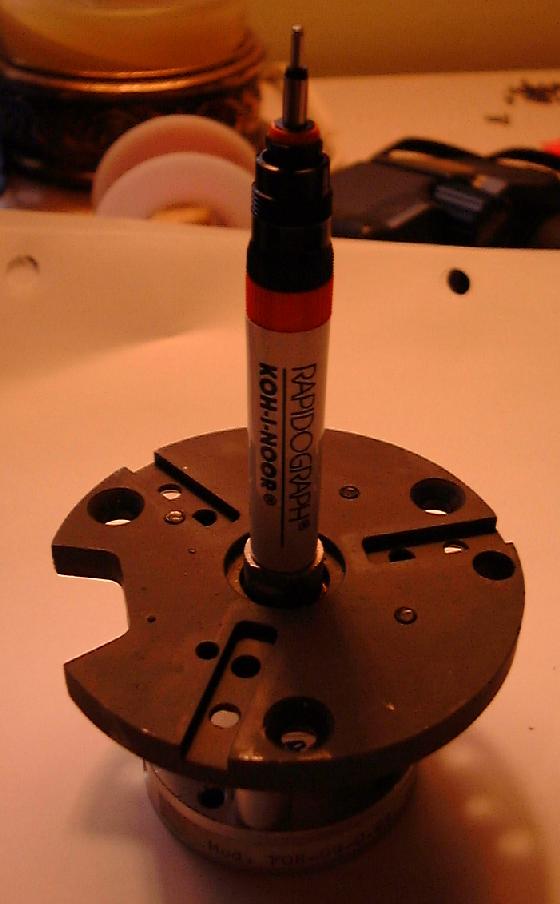

The final hand/pen holder.

---

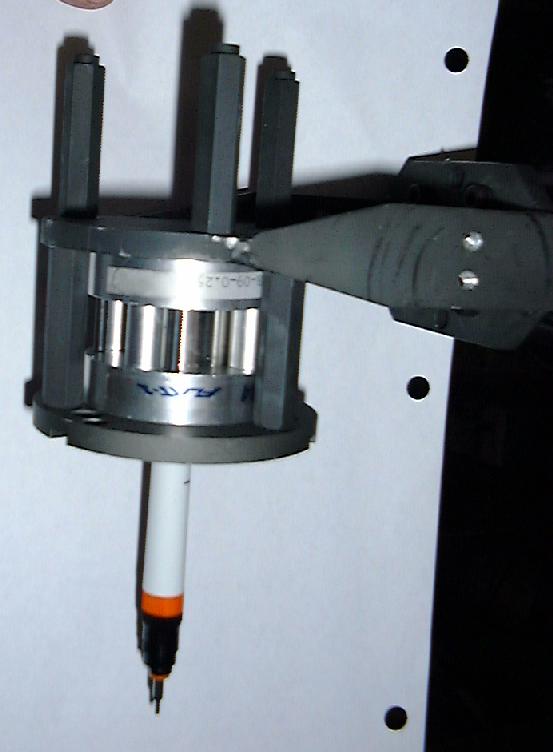

And the final hand/pen holder attached to the robot arm.
